1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery
1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery
اطلاعات پایه
محل منبع: جیانگ سو، چین، CN;JIA
نام تجاری: KAD
مقدار حداقل تعداد سفارش: 1
قیمت: $1,300-1,400
بهترین قیمت اکنون تماس بگیرید
طول چنگال: 1070 میلی متر/سفارشی عرض چنگال: 550/680mm/سفارشی
مرکز بارگذاری: 500 میلی متر وزن بار: 1500 کیلوگرم
ولتاژ باتری: 24 ولت ظرفیت باتری: 80Ah
ارتفاع بار: 3000 میلی متر نوع دکل: 2 مرحله / 3 مرحله
حالت محرک: واکی استیر منبع تغذیه: موتور DC
حداقل ارتفاع بلند کردن: 1580 میلی متر ابعاد کلی: 1770 (l)*850 (w)*1580 (ساعت)
وزن: 500 کیلوگرم سرعت رانندگی: 5.0/5.0 mm/s
سرعت بلند کردن: 140/135 میلی متر در ثانیه
برجسته کردن:

1.5 ton electric pallet stacker,electric pallet stacker 3000mm lift,24V battery pallet stacker

,

electric pallet stacker 3000mm lift

,

24V battery pallet stacker

Hot Sale 1.5 Ton 2m 3m Walkie Electric Stacker Electric Pallet Stacker Widen Fixed Leg
Product Specifications
Attribute Value
Condition New
Fork Length 1070mm/customized
Fork Width 550/680mm/customized
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability Indoor Flooring, Outdoor Pavement, other
Load Center 500 mm
Load weight 1500KG
Battery 24V/80Ah
Battery type Lead acid battery
Load height 3000mm
Warranty 1 Year/2000 Working Hours
Mast 2 Stage/3 Stage
Loading Capacity 1500kg
Drive mode Walkie Steer
Power Source DC MOTOR
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine
Min. Lifting Height 1580mm
Overall Dimensions 1770(L)*850(w)*1580(h)
Weight (KG) 500 kg
Key Features
  • Enhanced Stability: Wider legs provide a larger support area, increasing overall stability and reducing tipping risk
  • Improved Safety: Better weight distribution minimizes lateral tilting and swaying
  • Operational Stability: Enables handling higher loads with improved precision
  • Adaptation to Uneven Surfaces: Maintains stability on irregular ground conditions
  • Reduced Impact on Goods: Even weight distribution minimizes pressure on delicate items
  • Increased Handling Efficiency: Smooth operation reduces interruptions and improves productivity

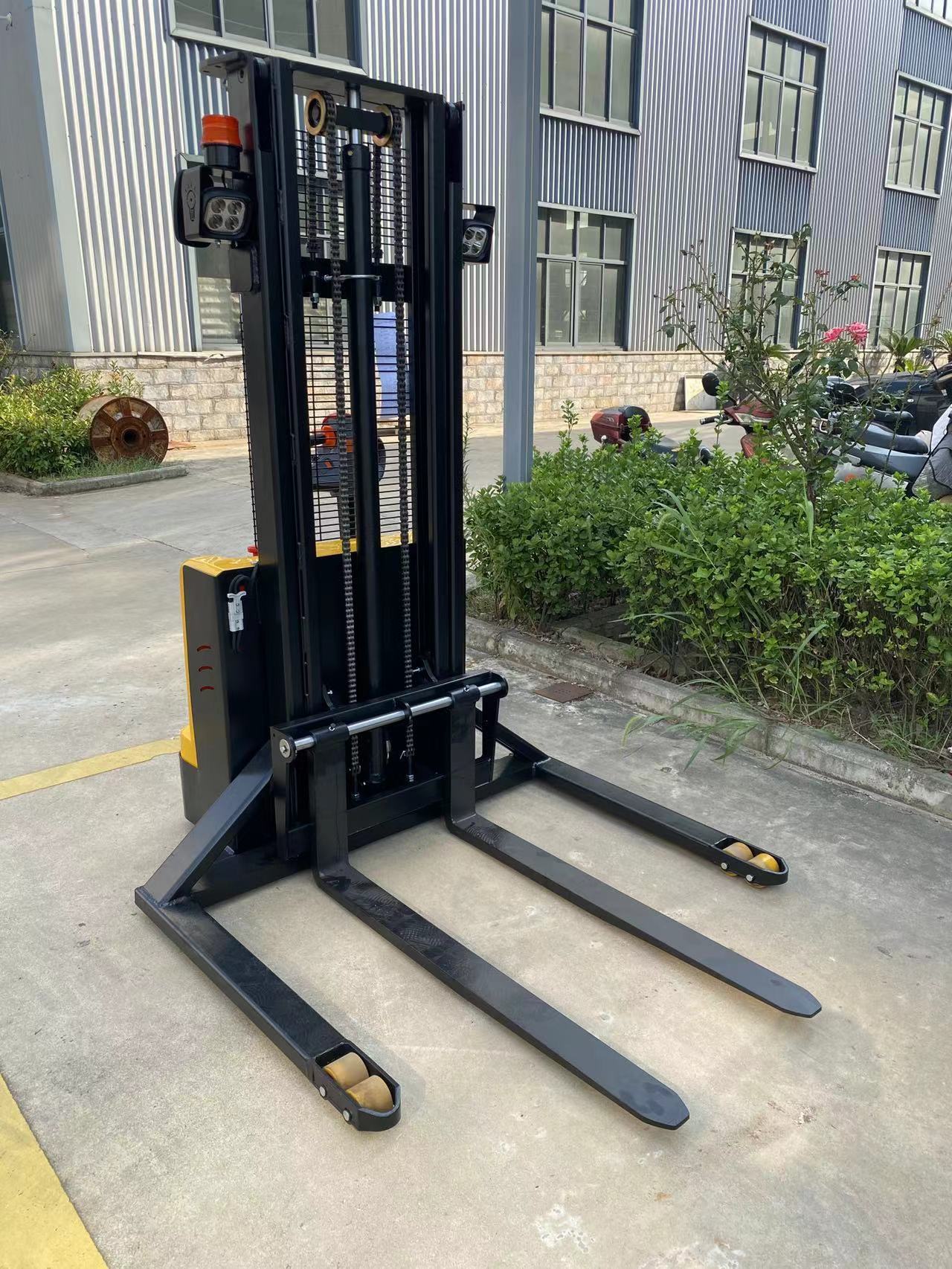

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 0

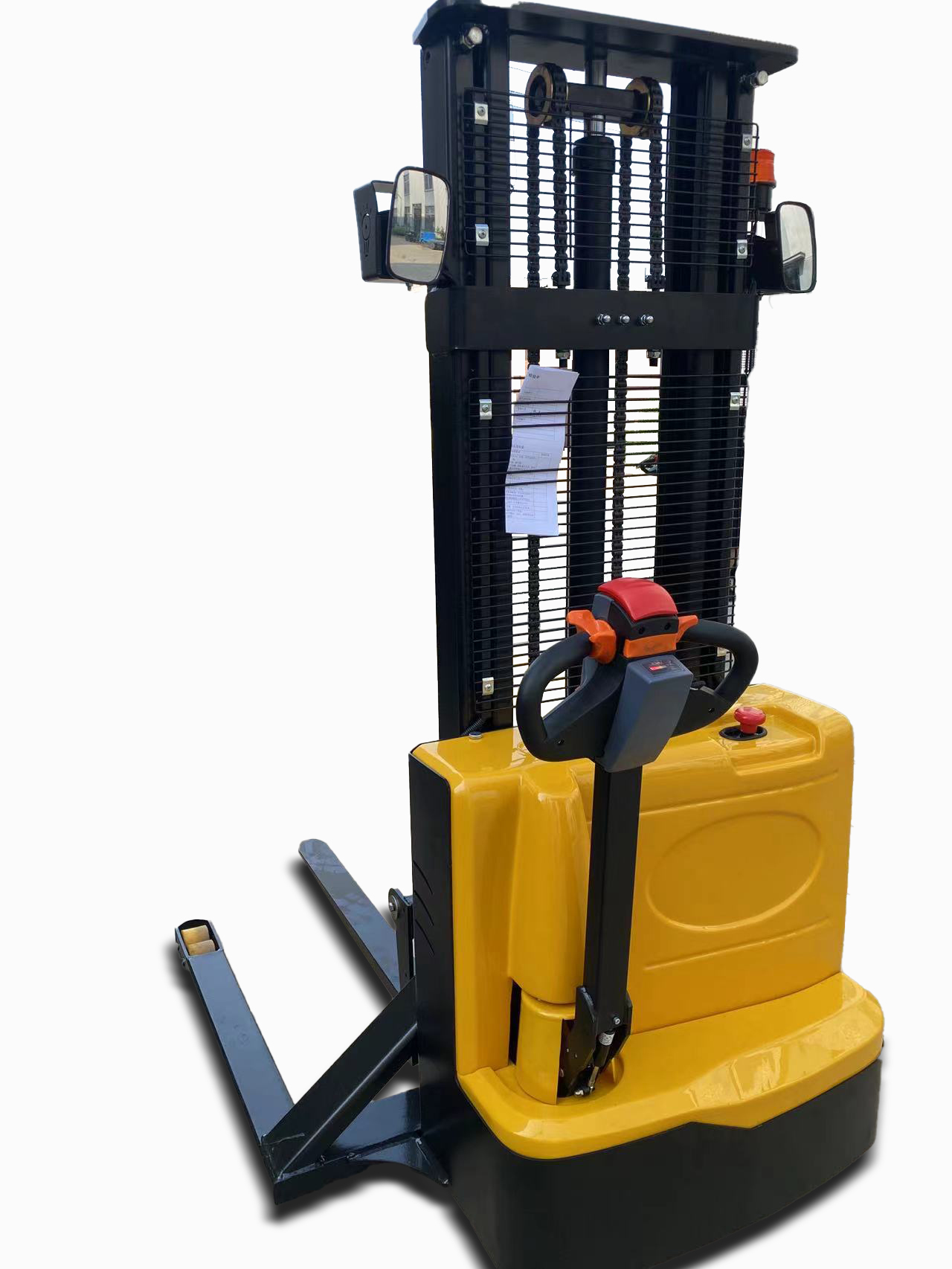

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 1

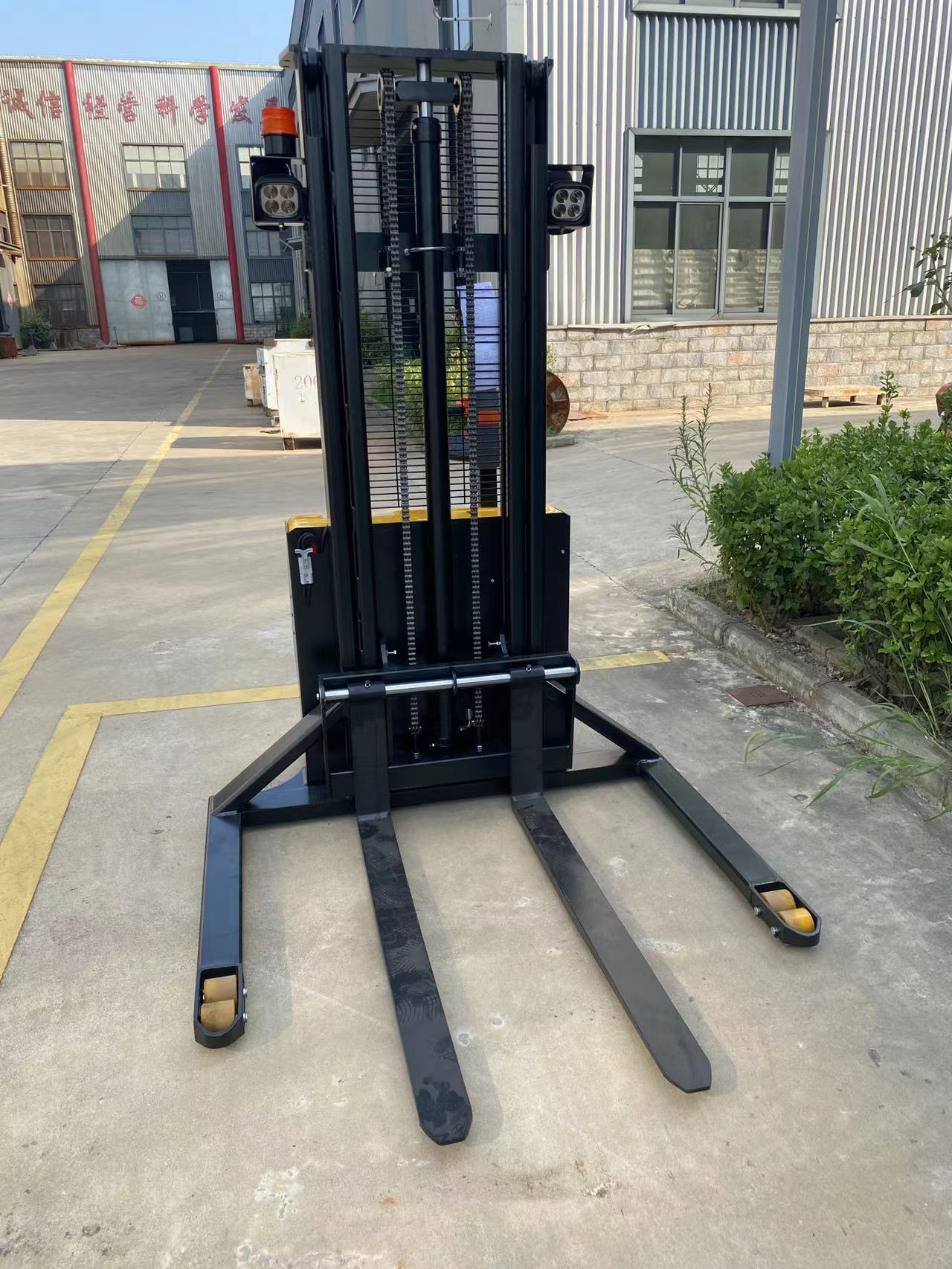

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 2

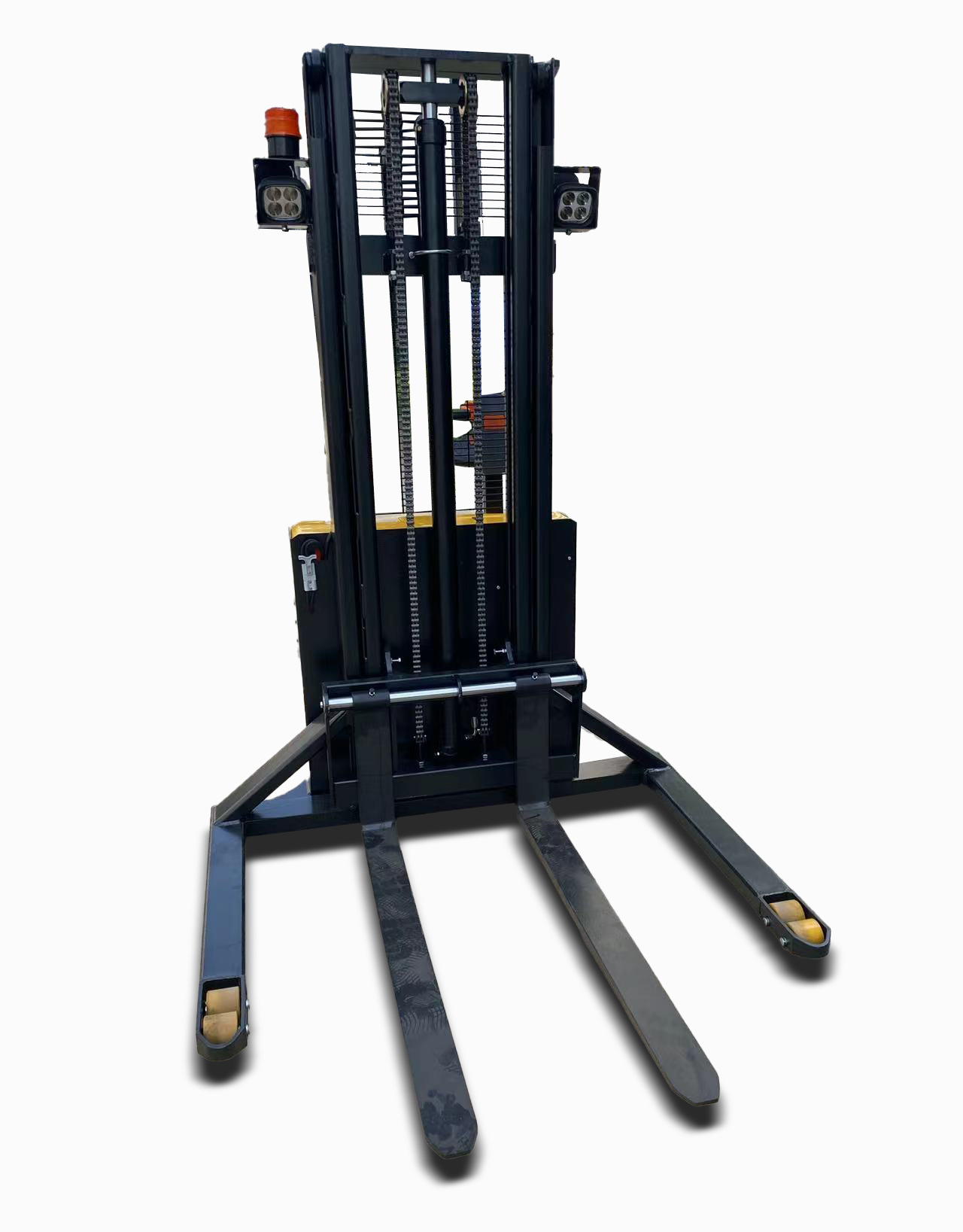

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 3

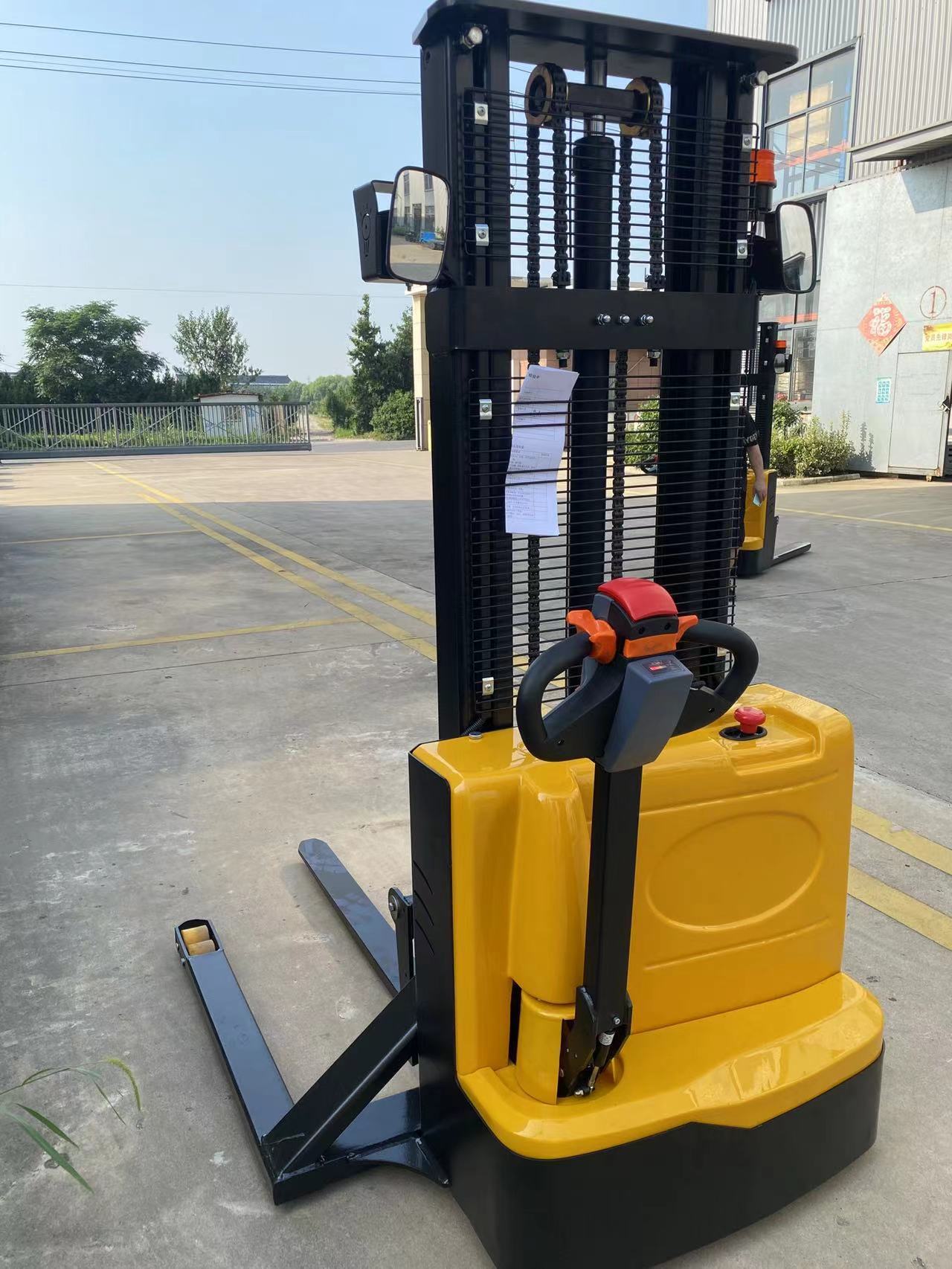

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 4
1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 5
Technical Specifications
MODEL CDDW12 CDDW16
Drive system Battery
Driving mode Walkie
Load Capacity Q KG 1200/1600
Load Center MM 500
Weight(With battery) CDDW12 KG 470/485/505/520
CDDW16 KG 495/510/532/553
Wheels Material PU
Lifting Height H3 MM 1600/2000/2500/3000
Lowest Mast H1 MM 2080/1580/1830/2080
Max.Height when operating H4 MM 2080/2730/3230/3730
Min.Height of Fork H13 MM ≤90
Length L MM 1770
Width B MM 850
Fork Length L1 MM 1070
Wheelbase Y MM 1250
Fork Outside Width B1 MM 680
Fork Inside Width B2 MM 305
Min.Turning Radius WA MM 1390
Driving Speed (Empty/Full Load) MM/S 5.0/5.0
Lifting Speed (Empty/Full Load) MM/S 140/135
Descending Speed (Empty/Full Load) MM/S 150/155
Max.Gradient (Empty/Full Load) % 7/5
Brake Electromagnetic
Driving Motor KW DC/0.75
Lifting Motor KW DC/2.2
Battery Capacity V/Ah 24*70/24*80Ah
Noise level DIN 12053 DB ＜70
Main Components
Control Handle

Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD sensitively. Uses Curtis brand accelerator to ensure safe operating.

Operation Panel

Combined with the key, battery indicator, and emergency switch. Functional panel with beautiful design makes work joyful and easy.

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 6
1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 7
Machine Parts

Strong cylinder and chain ensure smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery 8
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
