| محل منبع: | چین |
|---|---|
| نام تجاری: | KAD |
| گواهی: | CE |
| شماره مدل: | CPD |
| مقدار حداقل تعداد سفارش: | 1 |
| قیمت: | 6000-8000 |
| جزئیات بسته بندی: | پالت آهن + فیلم پلاستیکی |
| زمان تحویل: | 10 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، Western Union، MoneyGram |
| قابلیت ارائه: | 50 واحد در ماه |
| ظرفیت بار: | 1000 تا 3500 کیلوگرم | ارتفاع بار: | 3000mm-6000mm |
|---|---|---|---|
| باتری: | 12V/80Ah | تایپ کنید: | دیزل دیزل |
| رنگ: | درخواست مشتری | ویژگی: | سهولت ایمنی عملیات آسان |
| برنامه: | صنعت | گواهی: | CE |
| نوع قدرت: | دیزل قدرت | ||
| برجسته کردن: | 4 ton diesel forklift,large diesel forklift,heavy-duty diesel forklift,large diesel forklift,heavy-duty diesel forklift |
||

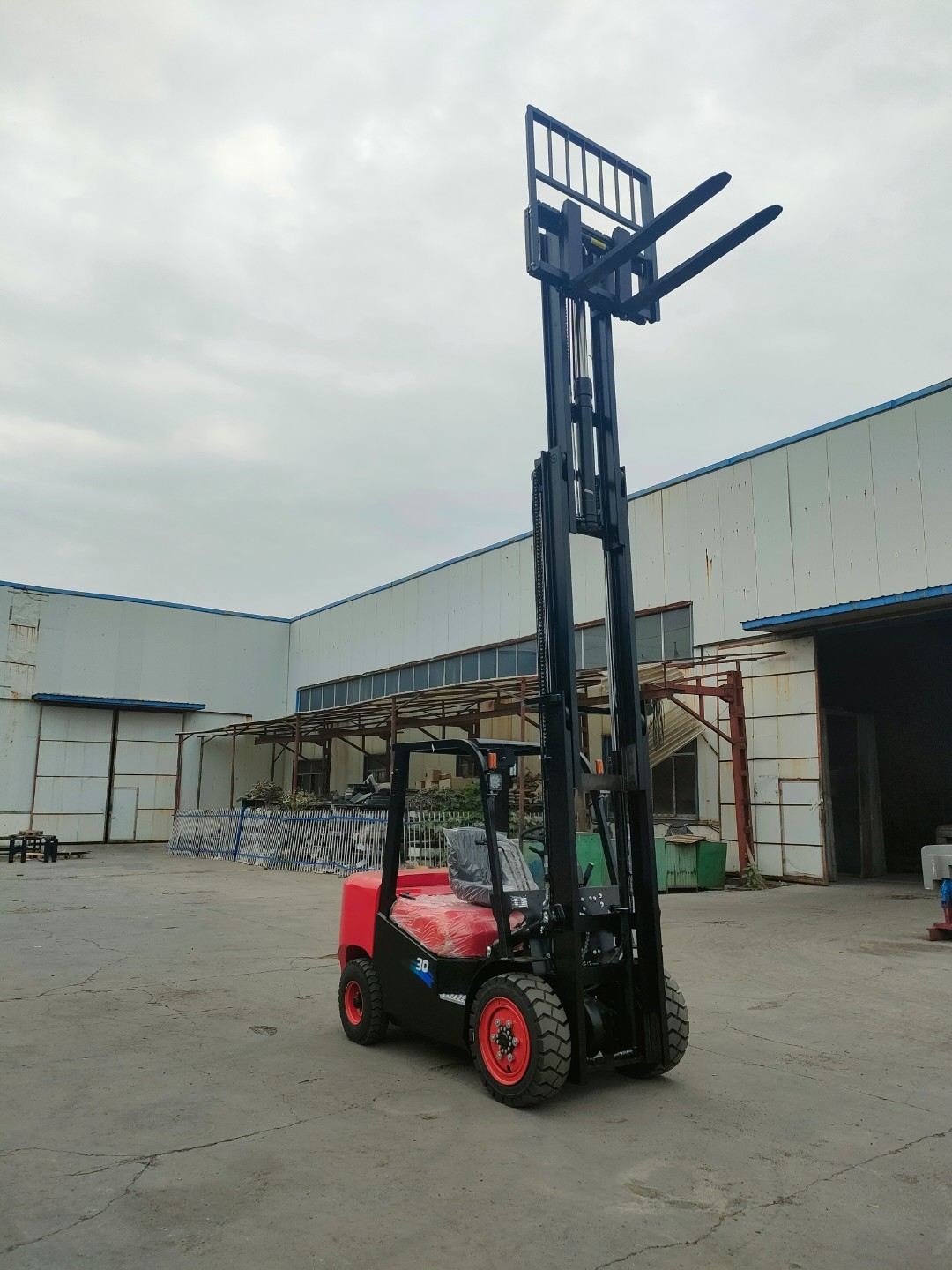

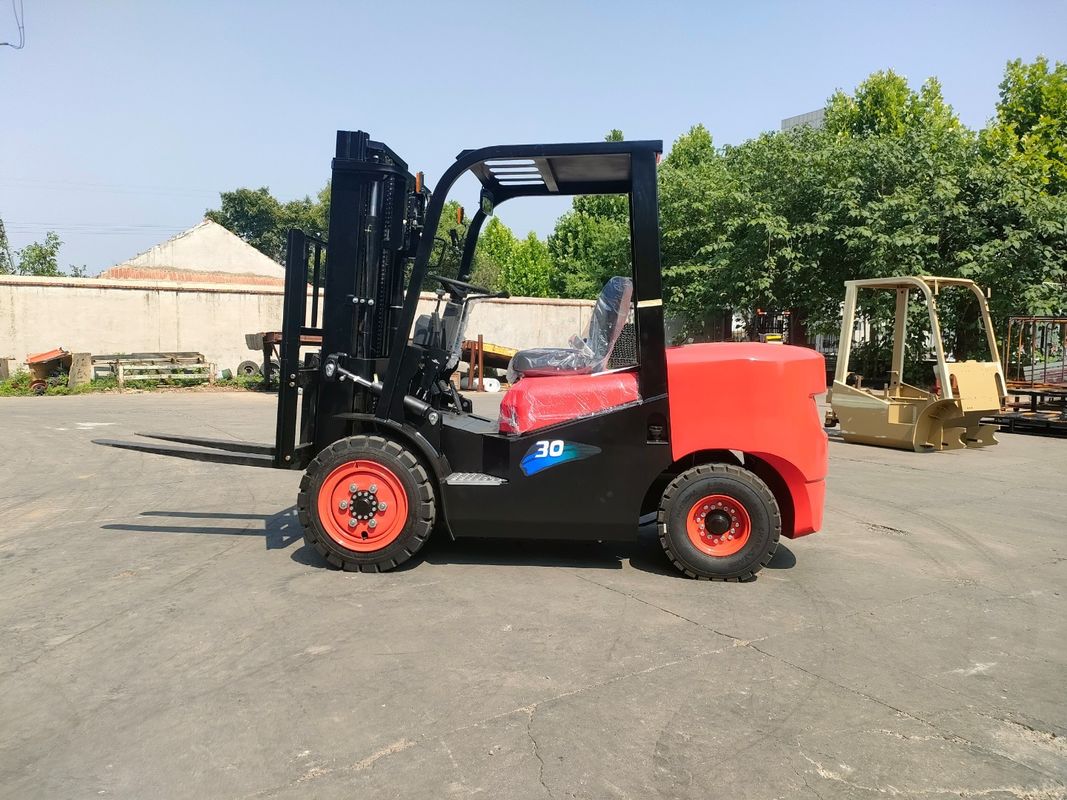

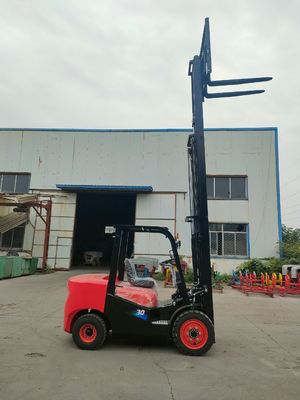

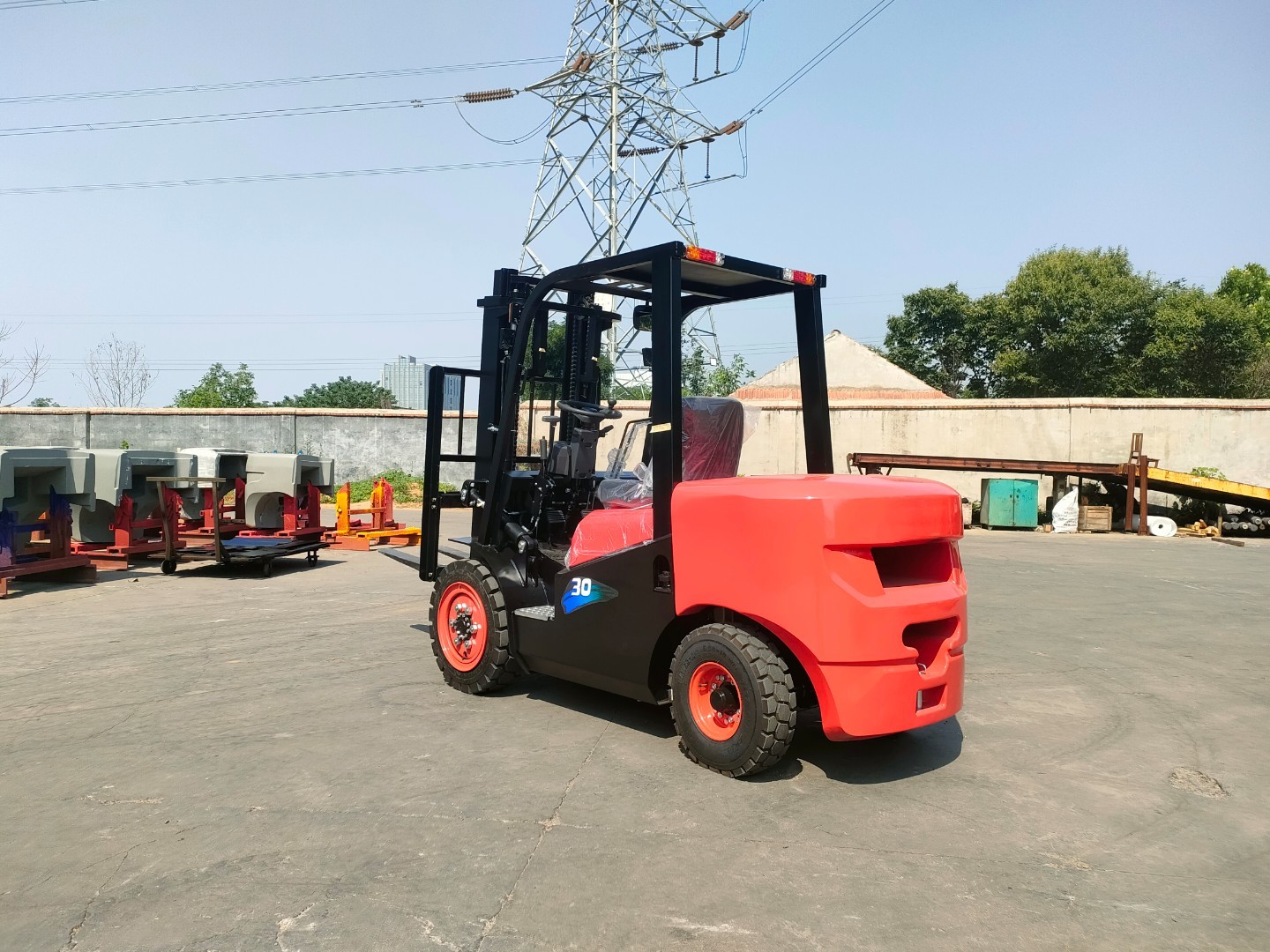

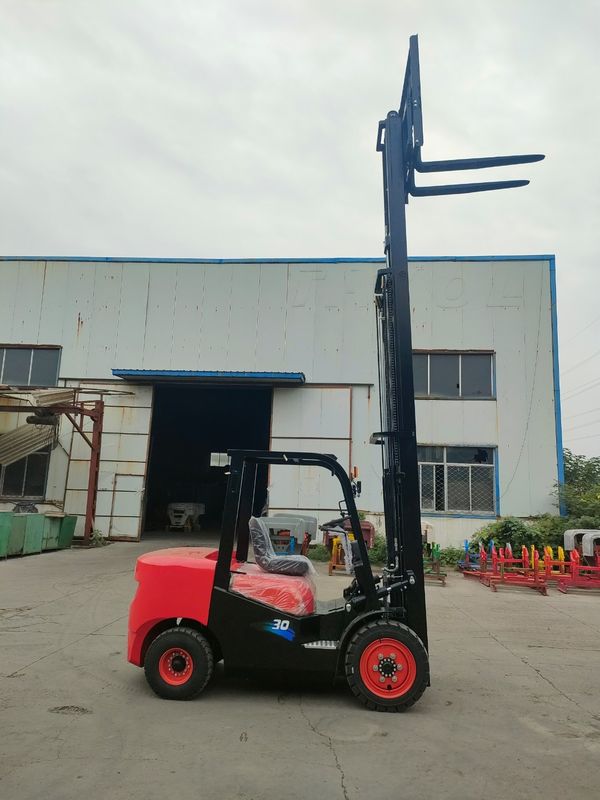

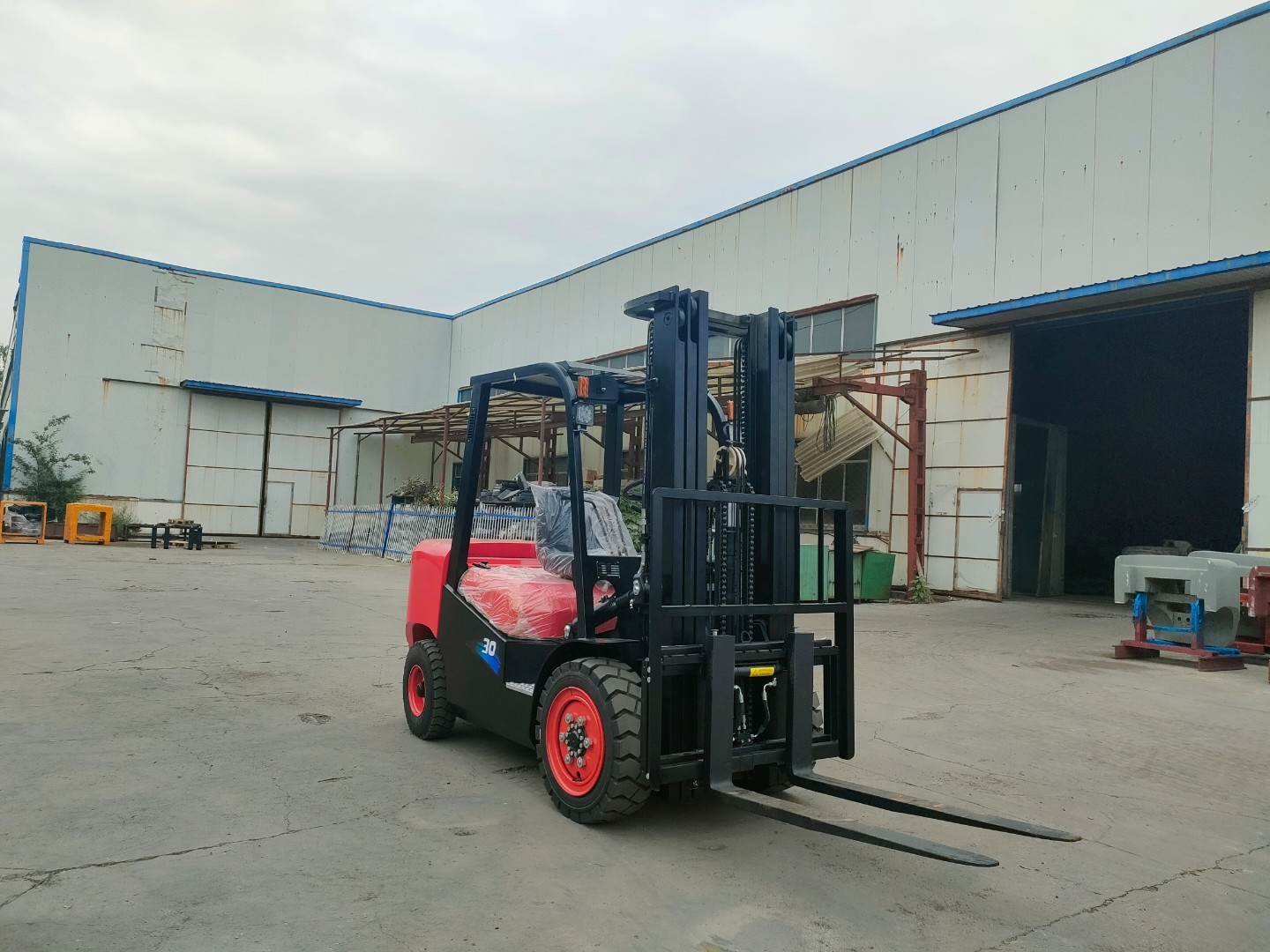

4 Ton Large Diesel Forklift Designed for Demanding Applications
Maximize your return on investment with a diesel forklift designed for minimal downtime and effortless servicing. Every component is engineered for quick access and extended service intervals.
Quick-Access Engineering: The engine compartment opens wide, with modular components and quick-disconnect couplings. Filters and routine service points are positioned for easy reach, reducing maintenance time by over 30%.
Extended Service Life: Critical systems like the reinforced mast and drive axle are built with premium materials and sealed against contaminants, dramatically increasing their lifespan and reducing the frequency of costly repairs.
Clear Diagnostic Interface: A standard digital dashboard provides real-time operational data and fault code alerts, enabling proactive maintenance and faster troubleshooting.
Global Parts Support: We ensure the availability of a common parts kit and global supply chain support, guaranteeing that your operations are never halted waiting for a component.
Unmatched Off-Road Capability: Equipped with large, deep-tread off-road tires and a high-clearance chassis to ensure superior traction and stability on any surface.
All-Weather Durability: The fully sealed, corrosion-resistant chassis and critical component guards protect against dust, mud, and moisture, guaranteeing longevity in harsh conditions.
Exceptional Overload & Grip Performance: Beyond a strong overload capacity, it features a limited-slip differential for enhanced wheel grip, preventing sinking and slippage on soft ground.
All-Terrain Versatility: Multiple mast heights and specialized tire options (e.g., snow tires) are available, making it the ideal solution for lumber yards, construction sites, and agricultural work.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
