| محل منبع: | چین |
|---|---|
| نام تجاری: | KAD |
| گواهی: | CE |
| شماره مدل: | CPD |
| مقدار حداقل تعداد سفارش: | 1 |
| قیمت: | 6000-8000 |
| جزئیات بسته بندی: | پالت آهن + فیلم پلاستیکی |
| زمان تحویل: | 10 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، Western Union، MoneyGram |
| قابلیت ارائه: | 50 واحد در ماه |
| ظرفیت بار: | 1000 تا 3500 کیلوگرم | ارتفاع بار: | 3000mm-6000mm |
|---|---|---|---|
| باتری: | 12V/80Ah | تایپ کنید: | دیزل دیزل |
| رنگ: | درخواست مشتری | ویژگی: | سهولت ایمنی عملیات آسان |
| برنامه: | صنعت | گواهی: | CE |
| نوع قدرت: | دیزل قدرت | ||
| برجسته کردن: | durable diesel forklift with warranty,battery operated forklift for longevity,reliable diesel forklift for heavy duty,battery operated forklift for longevity,reliable diesel forklift for heavy duty |
||

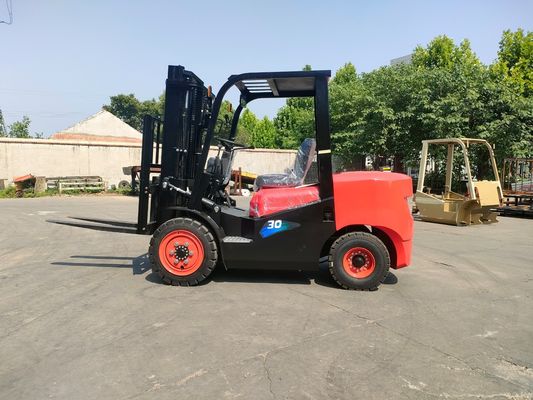

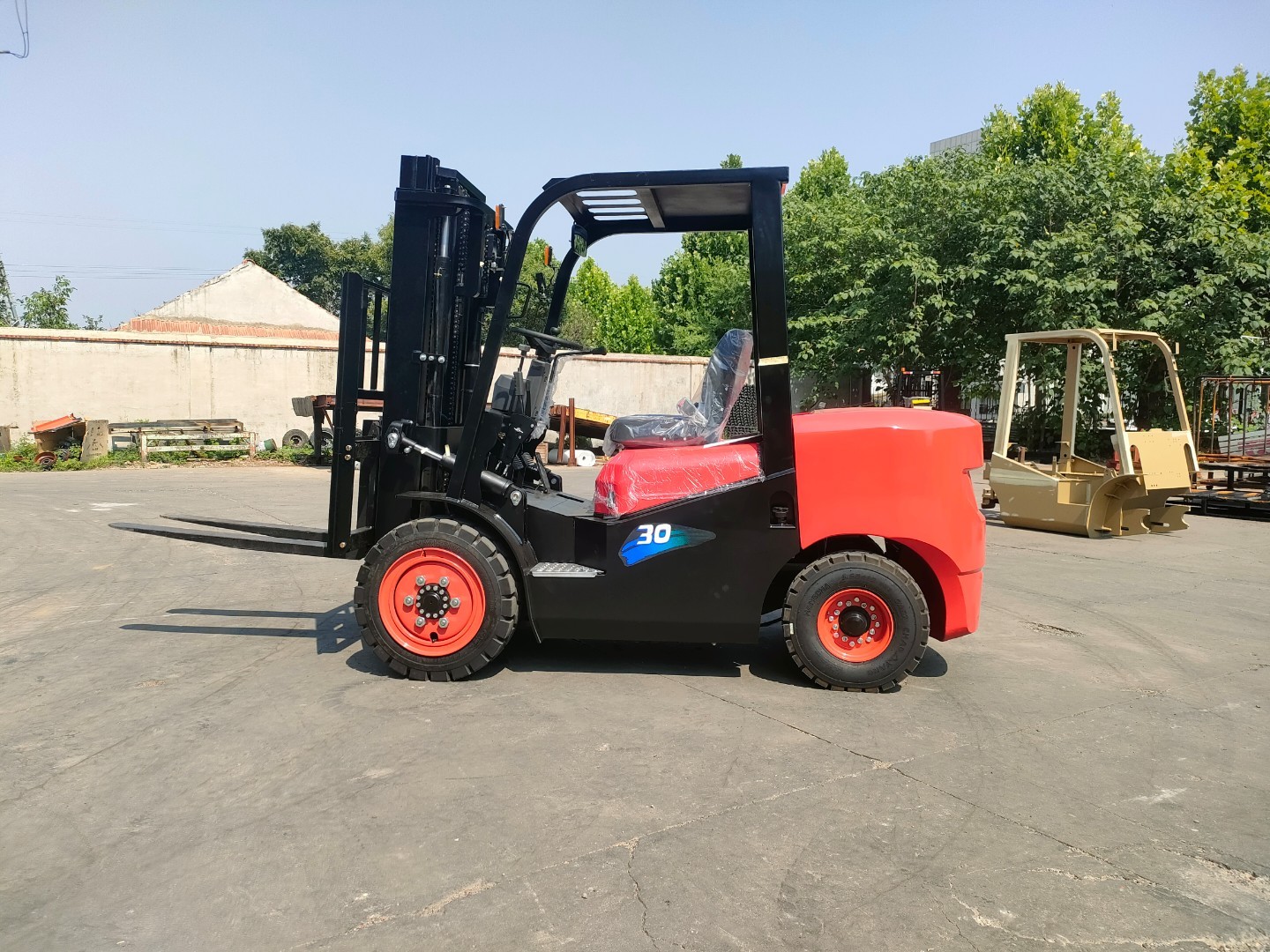

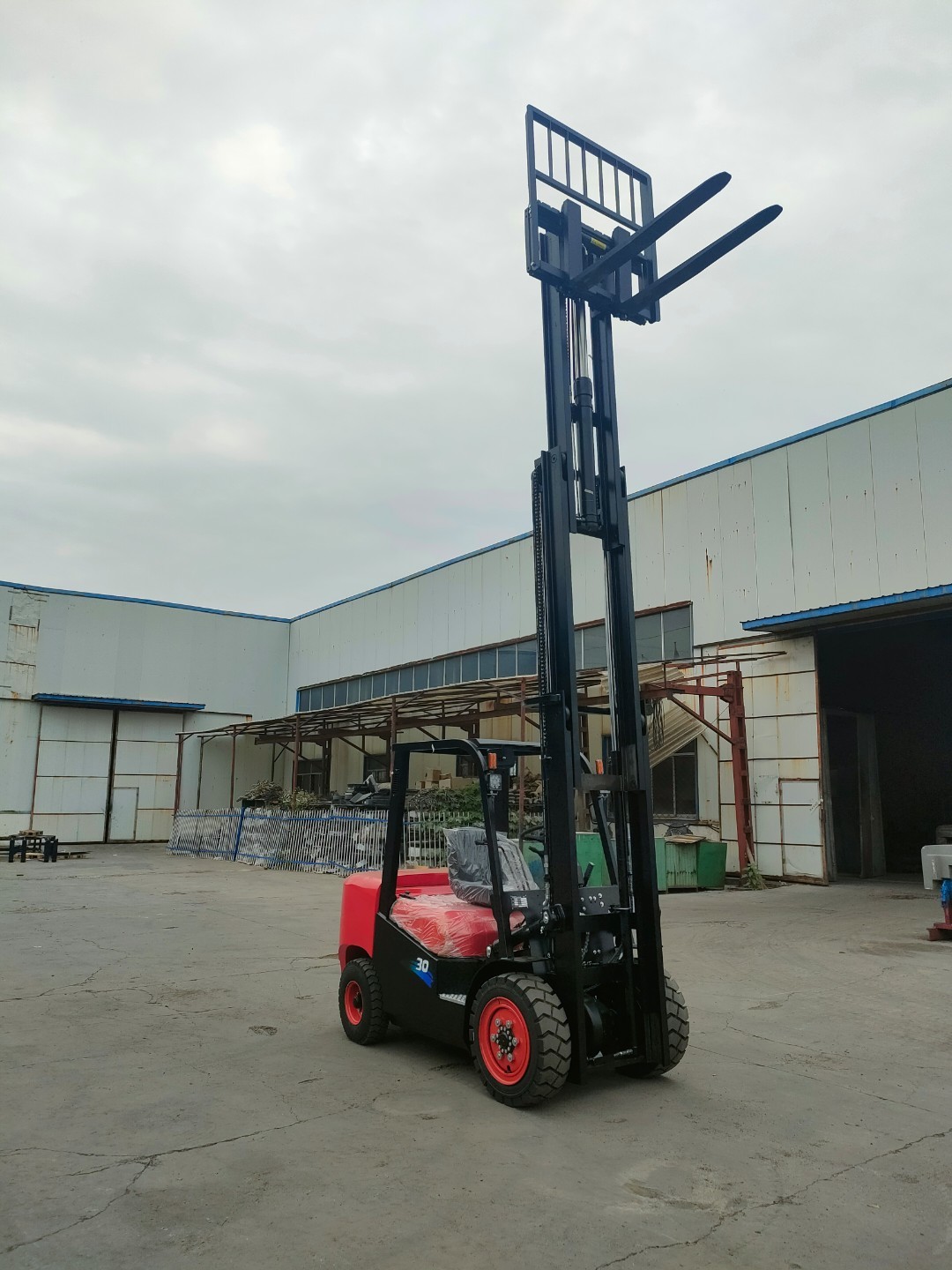

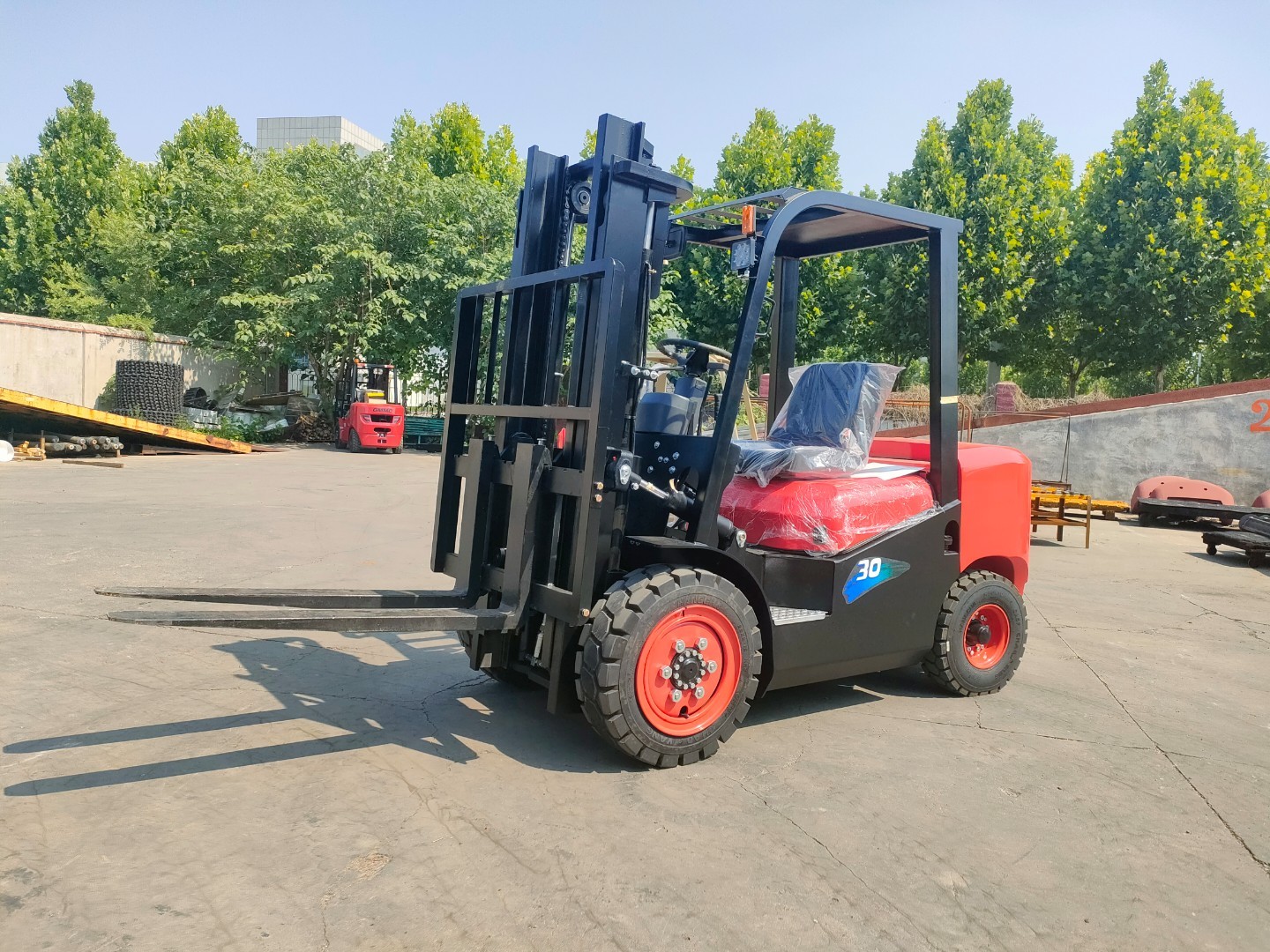

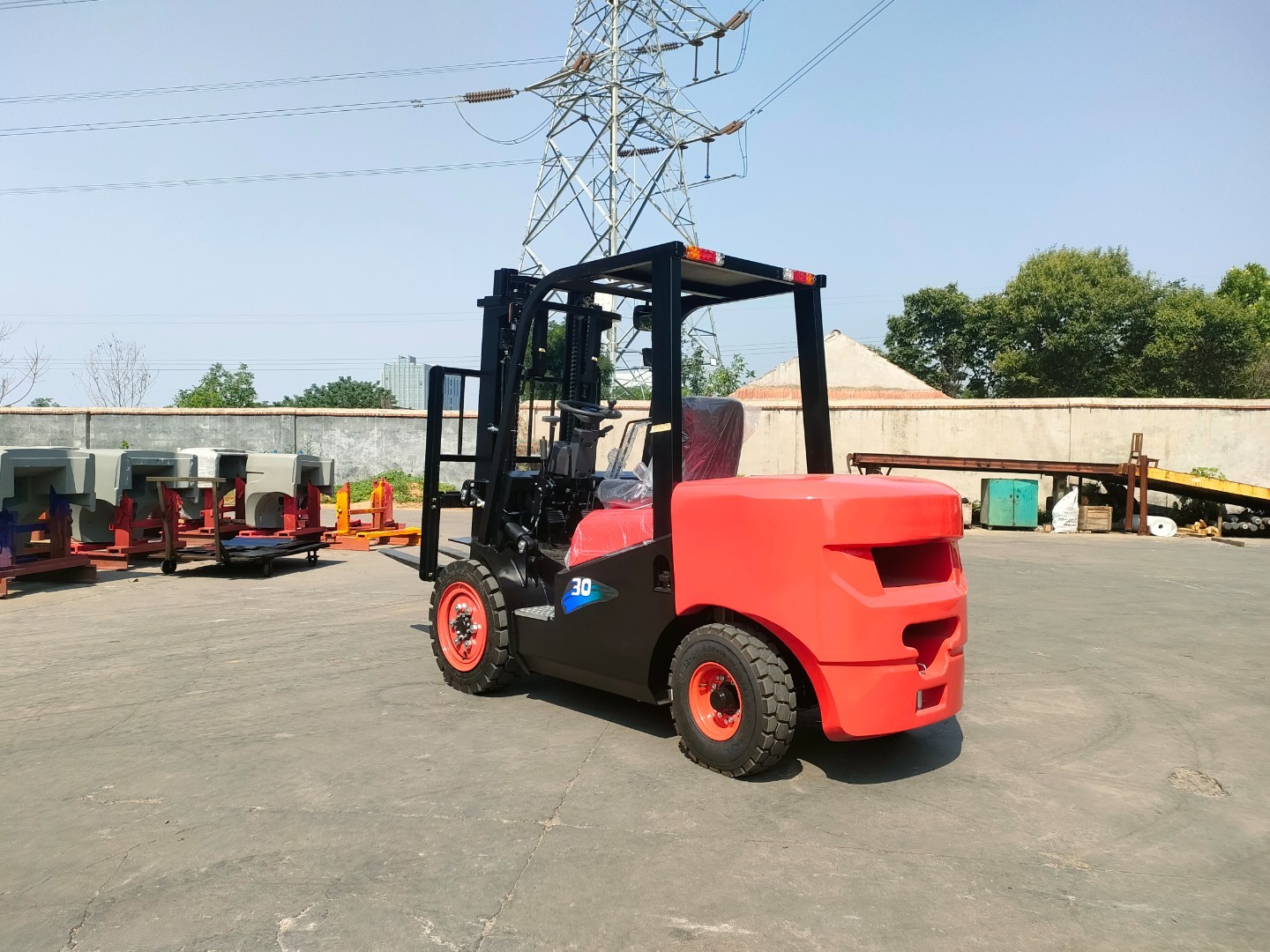

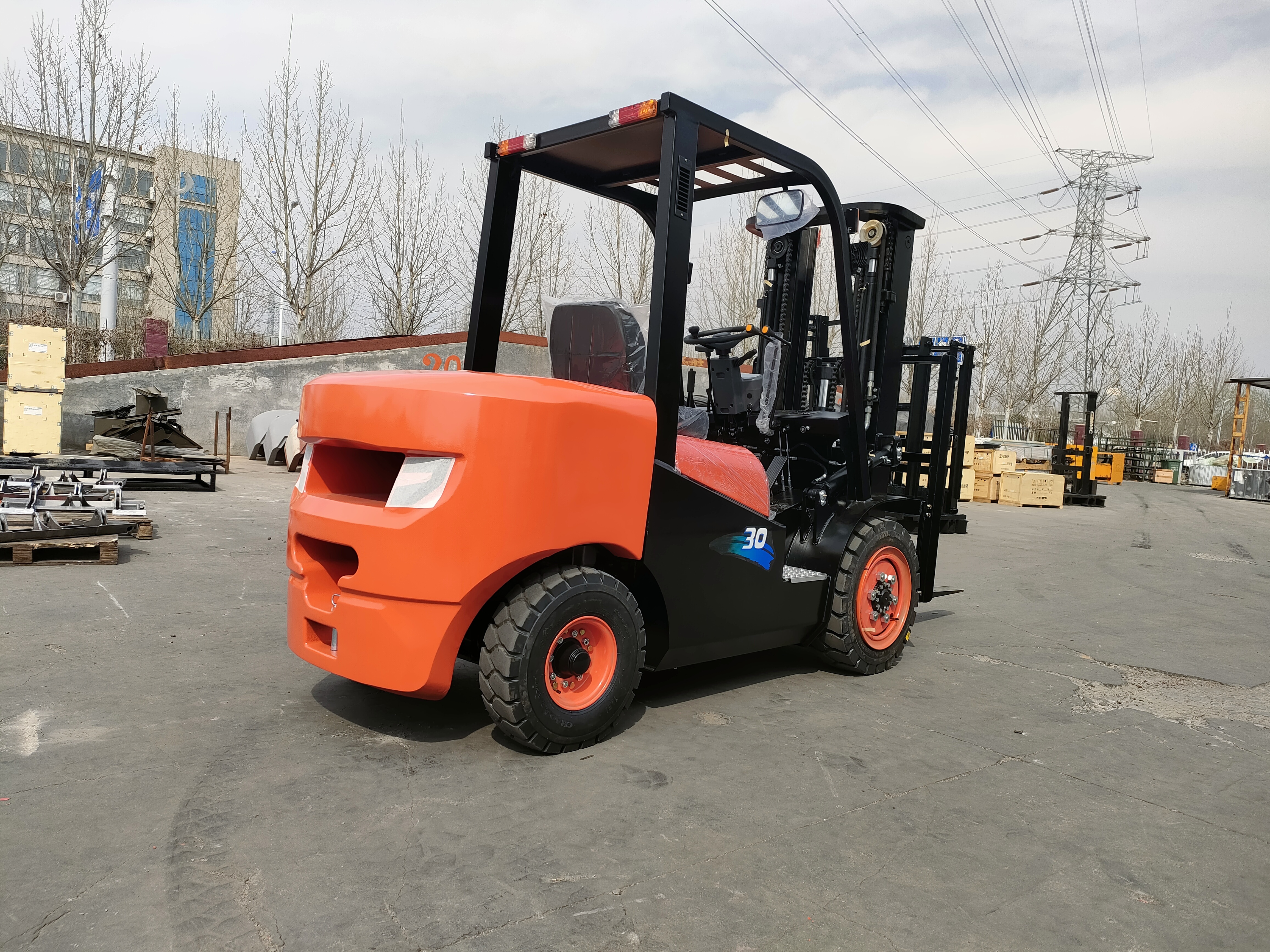

Robust and Durable Diesel Forklift Built for Longevity and Reliability
This is not just a forklift; it's a long-term asset. We've overbuilt every critical component to withstand decades of brutal punishment, guaranteeing unparalleled durability.
Unprecedented Warranty: We back our confidence with an industry-leading 10-year warranty on the main load-bearing frame and gantry structure.
Over-Engineered Core: Features a triple-reinforced mast, a solid one-piece drive axle, and componentry rated for 150% of its nominal capacity. It's designed to handle accidental overloads without damage.
Corrosion Defense System: The entire chassis undergoes a multi-step anti-corrosion treatment, including cathodic electrocoating, to resist rust and degradation in the harshest environments.
Simplified for Longevity: Avoids complex electronics in its core functions. Uses heavy-duty industrial-grade mechanical and hydraulic components that are easy to service, repair, and keep running for years.
|
Model
|
|
CPC30/CPCD30
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Power Type
|
|
Diesel
|
|
Max, Lifting Speed (No-Load / Full-Load)
|
mm/s
|
450 / 440
|
|
Max. Driving Speed (Full-Load /No-Load)
|
km/h
|
18 / 20
|
|
Max. Towing Capacity(Full-Load/No-Load
|
kN
|
15.5 / 10.5
|
|
Gradeability(Full-Load/No-Load)
|
%
|
15 / 20
|
|
Lifting Height
|
mm
|
3000
|
|
Free Lift Height
|
mm
|
80
|
|
Mast Tilting Angle (Forward-Backward)
|
(°)
|
6 / 12
|
|
Min.Turning Radius
|
mm
|
2530
|
|
Min.Right Angle Aisle Width
|
mm
|
2050
|
|
Min. Ground Clearance
|
mm
|
135
|
|
Overall Length (including Fork)
|
mm
|
4170
|
|
Overall Width
|
mm
|
1230
|
|
Overall Height (Mast Lowered)
|
mm
|
2110
|
|
Overall Height (Mast Extended)
|
mm
|
4270
|
|
Overall Height to Overhead
|
mm
|
2105
|
|
Front Overhang
|
mm
|
465
|
|
Wheelbase
|
mm
|
1760
|
|
Front Tread
|
mm
|
1000
|
|
Rear Tread
|
mm
|
970
|
|
Front Wheel
|
mm
|
28*9-15
|
|
Rear Wheel
|
mm
|
6.50-10
|
|
Fork Width
|
mm
|
122
|
|
Fork Thickness
|
mm
|
45
|
|
Backrest Height
|
mm
|
1225
|
|
Fork Length
|
mm
|
1220
|
|
Engine Model
|
|
C490BPG
|
|
Rate Power
|
KW
|
40
|
|
Rotate Speed at Rate Power
|
rpm
|
2650
|
|
Max. Torque
|
Nm
|
162
|
|
Rotation Speed at Max. Torque
|
rpm
|
1800 ~ 1900
|
|
Type of Power Shift
|
|
Mechanical / Hydraulic
|
|
Curb Weight
|
kg
|
4100
|
![]()
Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
