| محل منبع: | چین |
|---|---|
| نام تجاری: | KAD |
| گواهی: | CE/ISO9001 |
| شماره مدل: | CDD20 |
| مقدار حداقل تعداد سفارش: | 1 |
| قیمت: | $7199 |
| جزئیات بسته بندی: | پالت آهن + فیلم پلاستیکی |
| زمان تحویل: | 15 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، Western Union |
| قابلیت ارائه: | 50 واحد در ماه |
| مدل شماره: | CDD20 | ظرفیت بار: | 1-2 تن |
|---|---|---|---|
| مرکز بارگذاری: | 500 میلی متر | ارتفاع بالابر: | 1-10M |
| ظرفیت باتری: | 24V/280AH | اندازه چنگال: | 1220*100*40mm |
| ترخیص زمین: | 30 میلی متر | شعاع چرخش: | 1500 میلی متر |
| سرعت رانندگی: | 4 کیلومتر بر ساعت | شیب: | 3 درجه/5 درجه |
| موتور محرکه: | 0.8 کیلو وات | موتوری: | 0.8 کیلو وات |
| اندازه تایر: | 300/250 میلی متر | اندازه کلی: | 2570*1390*2200 میلی متر |
| وزن: | 2800 کیلوگرم | ||
| برجسته کردن: | stand-on electric reach truck with side-shift,electric pallet stacker with EPS buffer,narrow aisle warehouse reach truck,electric pallet stacker with EPS buffer,narrow aisle warehouse reach truck |
||

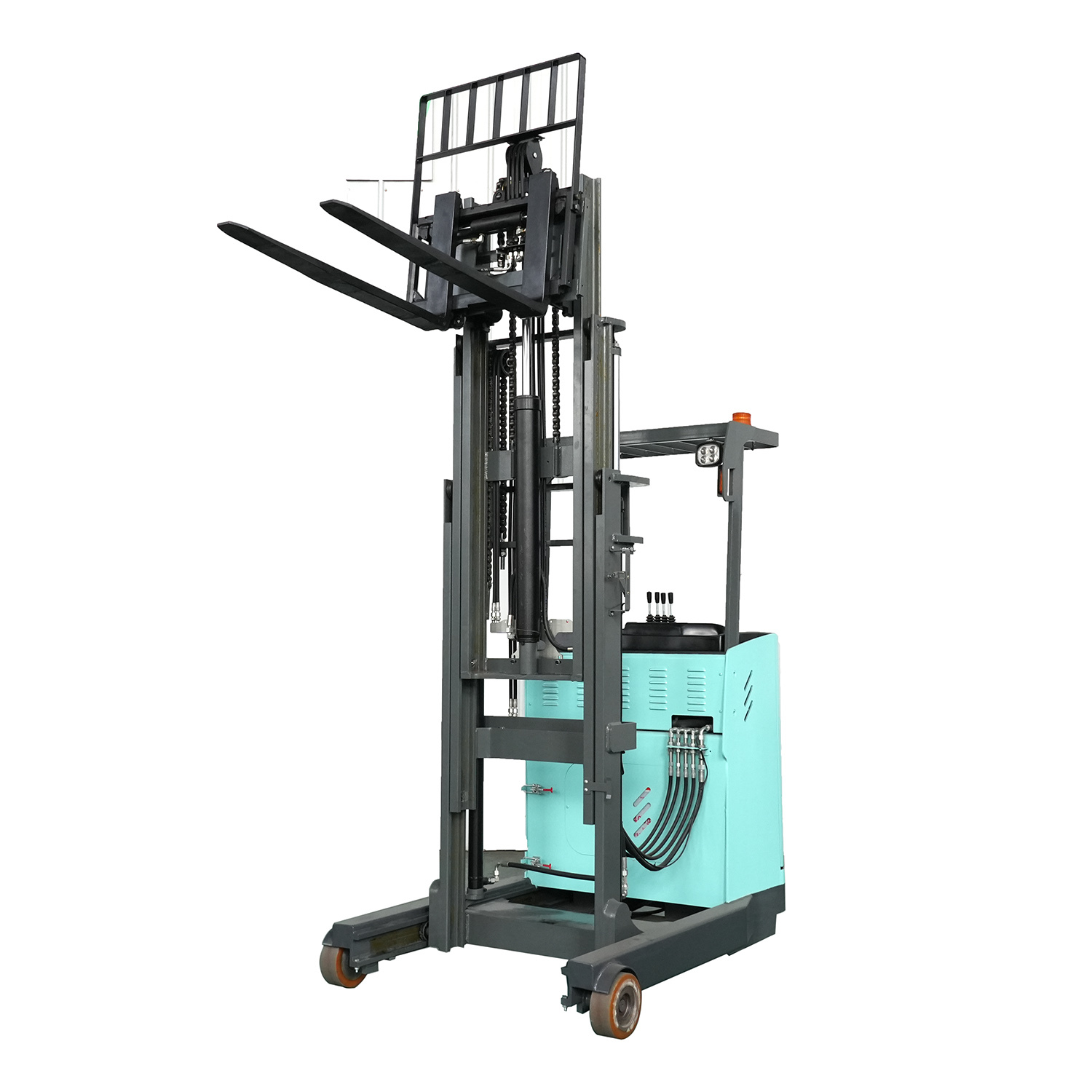

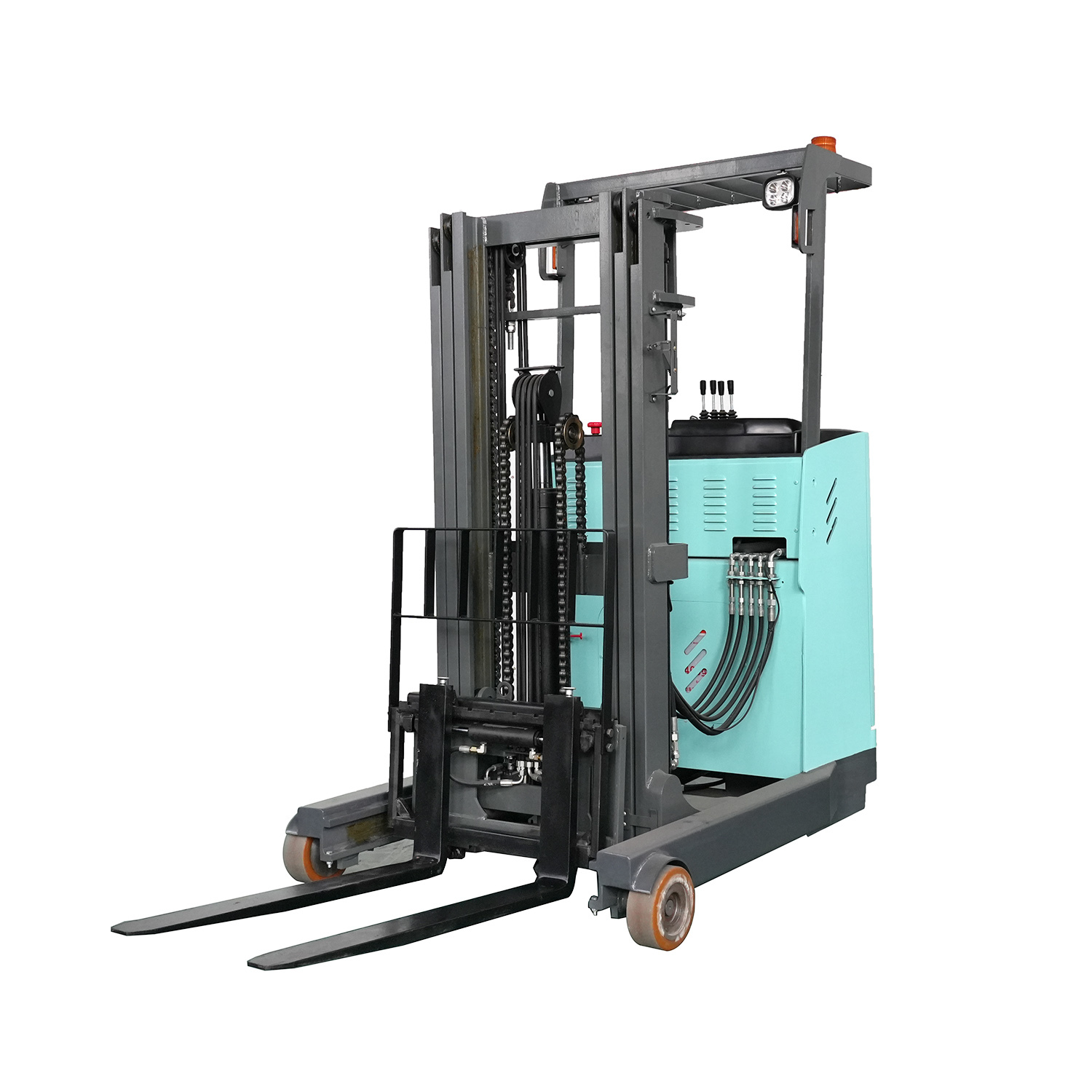

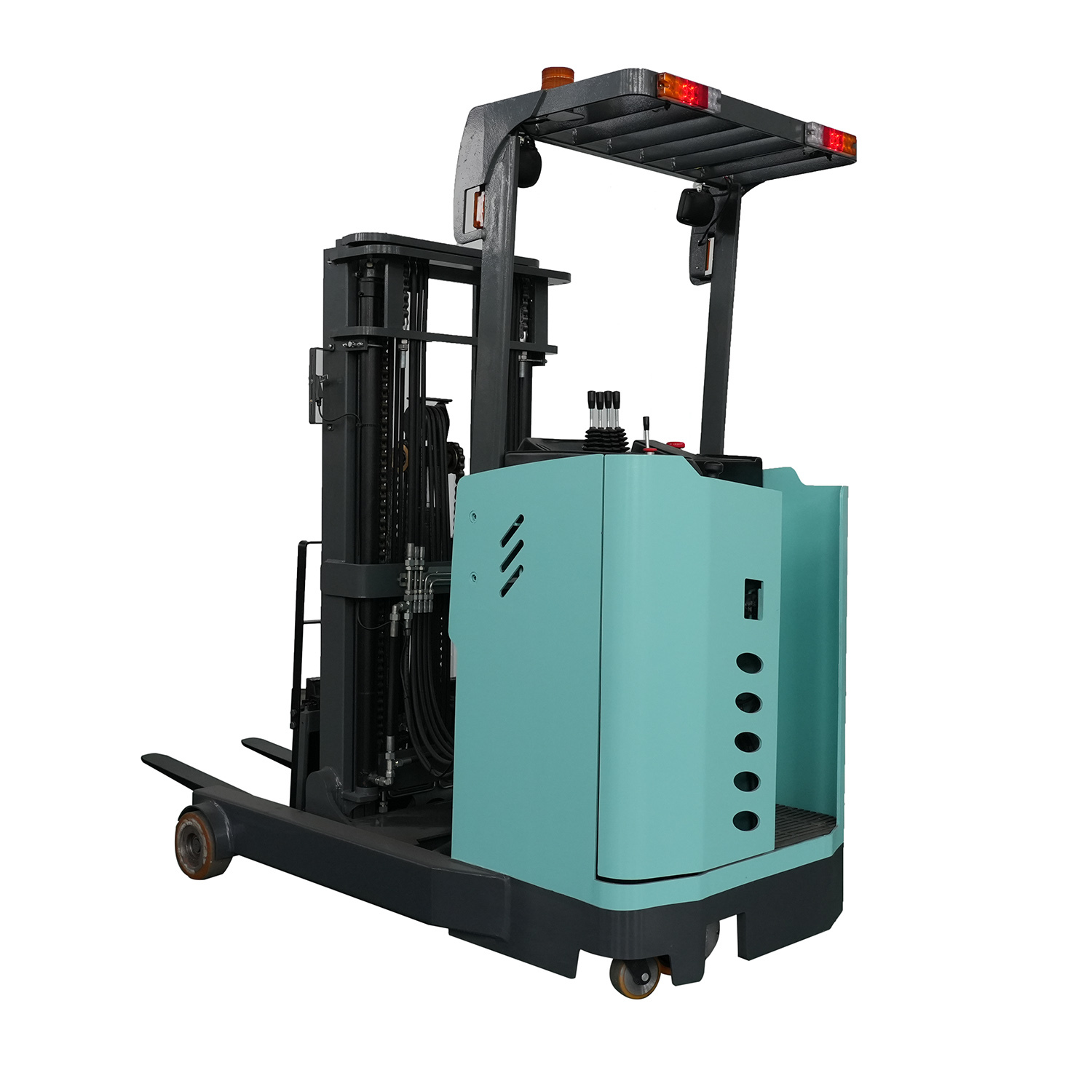

The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
The reach forklift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the to excel in various material handling scenarios.with side shiftreach forklift with side shiftFrist Class Ride on Electric Reach Truck Forklift for Narrow Aisle Warehouse with EPS
|
Model
|
|
CQDS1530
|
CQDS2030
|
|
Load Capacity
|
kg
|
1500
|
2000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
|
Load capacity at the highest point
|
kg
|
1000
|
1000
|
|
Weight
|
kg
|
2500
|
2800
|
|
Overall length (forks retracted)
|
mm
|
2570
|
2570
|
|
Overall width
|
mm
|
1100/1390
|
1100/1390
|
|
Static height of gantry
|
mm
|
2100
|
2100
|
|
Height of roof rack
|
mm
|
2200
|
2200
|
|
Moving forward distance
|
mm
|
600
|
600
|
|
Ground clearance
|
mm
|
45
|
45
|
|
Minimum outside turning radius
|
mm
|
1600
|
1600
|
|
Maximum gradient with full load
|
%
|
5
|
5
|
|
Load centre distance
|
mm
|
500
|
500
|
|
Type specification of travelling motor
|
-
|
ZQD13-1C
|
ZQD13-1C
|
|
Travelling motor 1min working current
|
A
|
195
|
195
|
|
Battery capacity
|
-
|
280Ah/24V
|
280Ah/24V
|
