| محل منبع: | چین |
|---|---|
| نام تجاری: | KAD |
| گواهی: | CE |
| شماره مدل: | CPD2030 |
| مقدار حداقل تعداد سفارش: | 1 واحد |
| قیمت: | $7100-$7300 /unit |
| جزئیات بسته بندی: | پالت آهن + فیلم پلاستیکی |
| زمان تحویل: | 15 روز کاری |
| شرایط پرداخت: | L/C، D/A، D/P، T/T، Western Union |
| قابلیت ارائه: | 50 واحد در ماه |
| نام محصول: | استکر رول کاغذی 4 چرخ | رنگ: | قرمز / سفارشی |
|---|---|---|---|
| مرکز بارگذاری: | 500 میلی متر | وزن بار: | 1500-3000 کیلوگرم |
| ارتفاع بار: | 3000 میلی متر | لاستیک: | لاستیک هسته جامد |
| برجسته کردن: | 2.5 ton electric forklift with clamp,4-wheel electric paper roll stacker,2500kg full electric forklift battery,4-wheel electric paper roll stacker,2500kg full electric forklift battery |
||

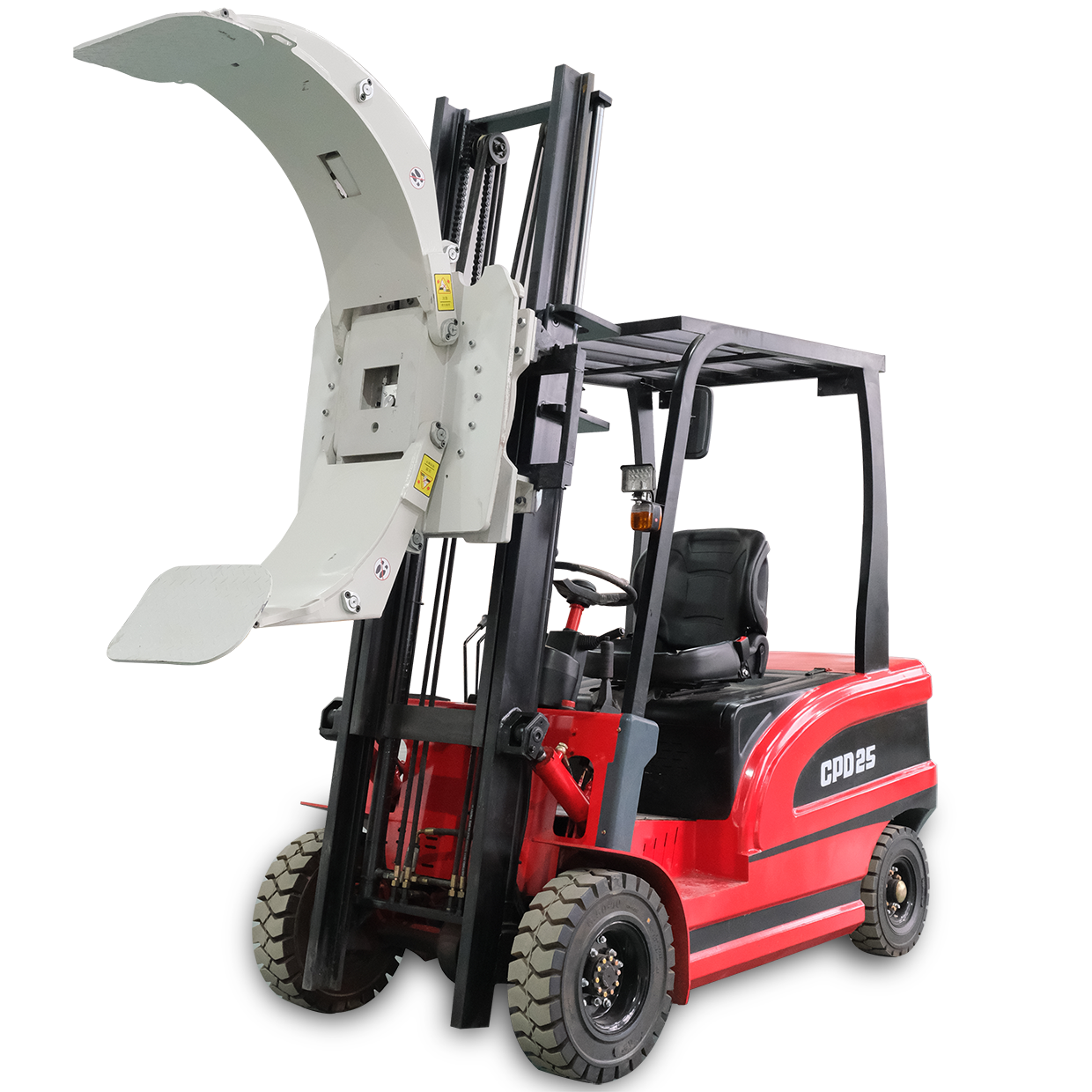

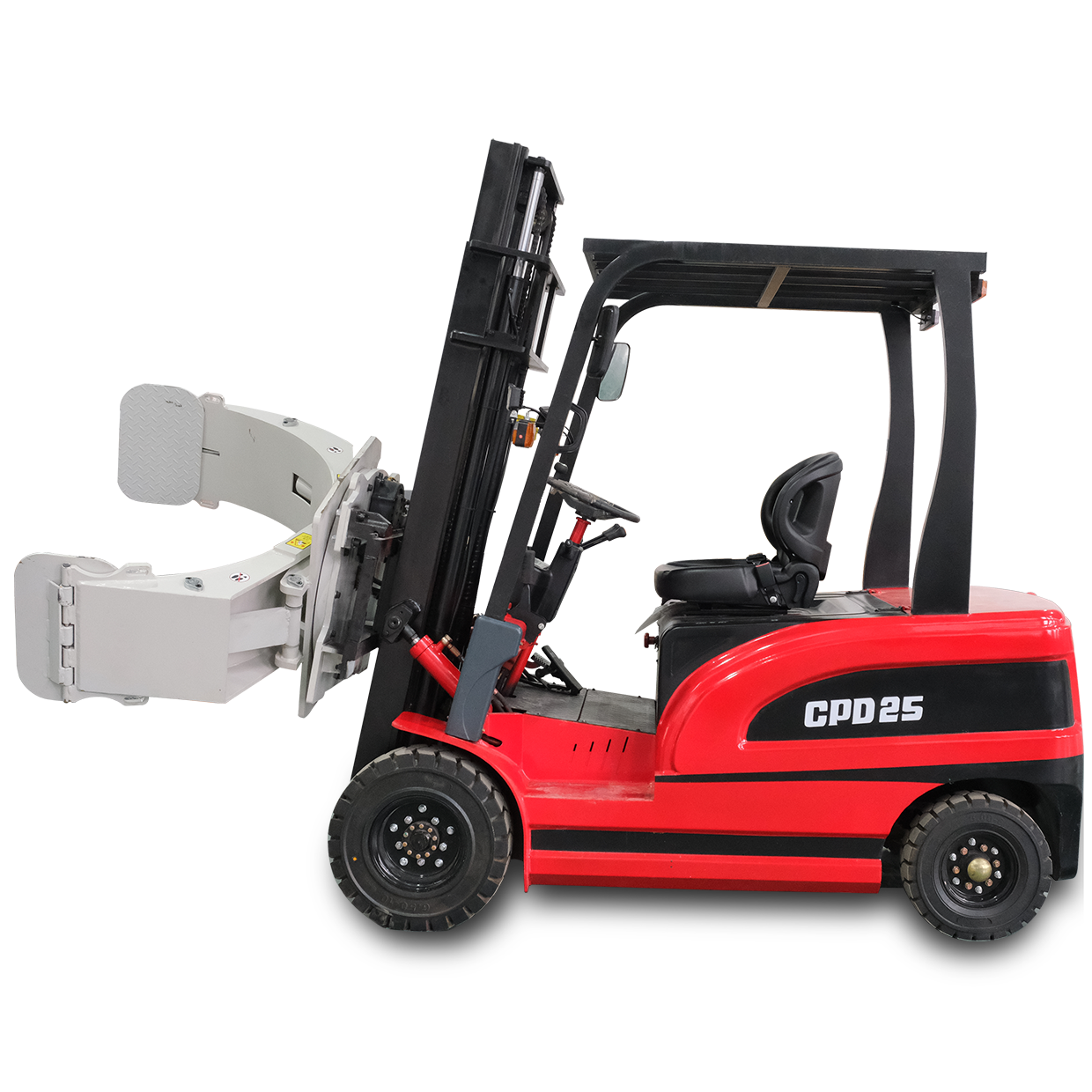

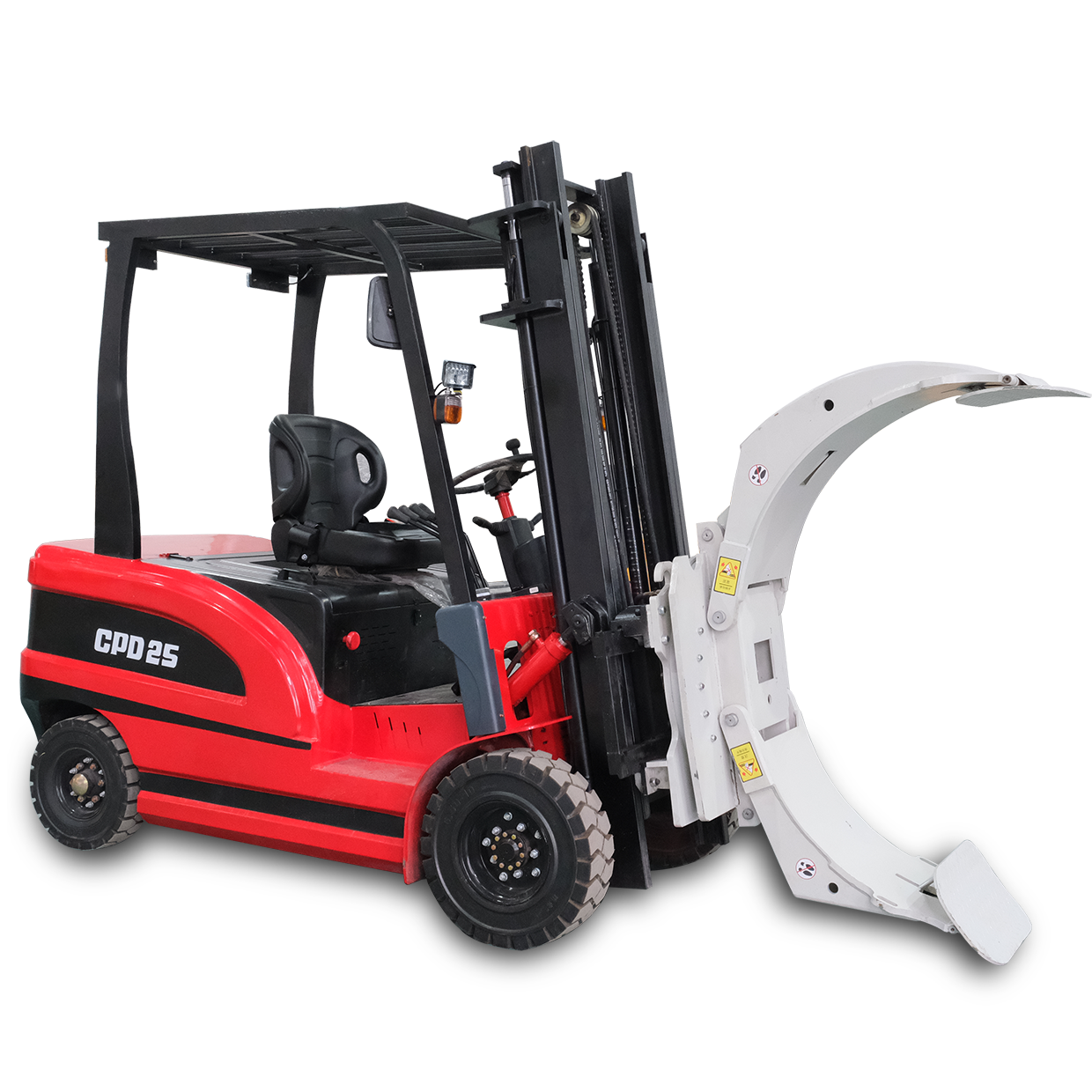

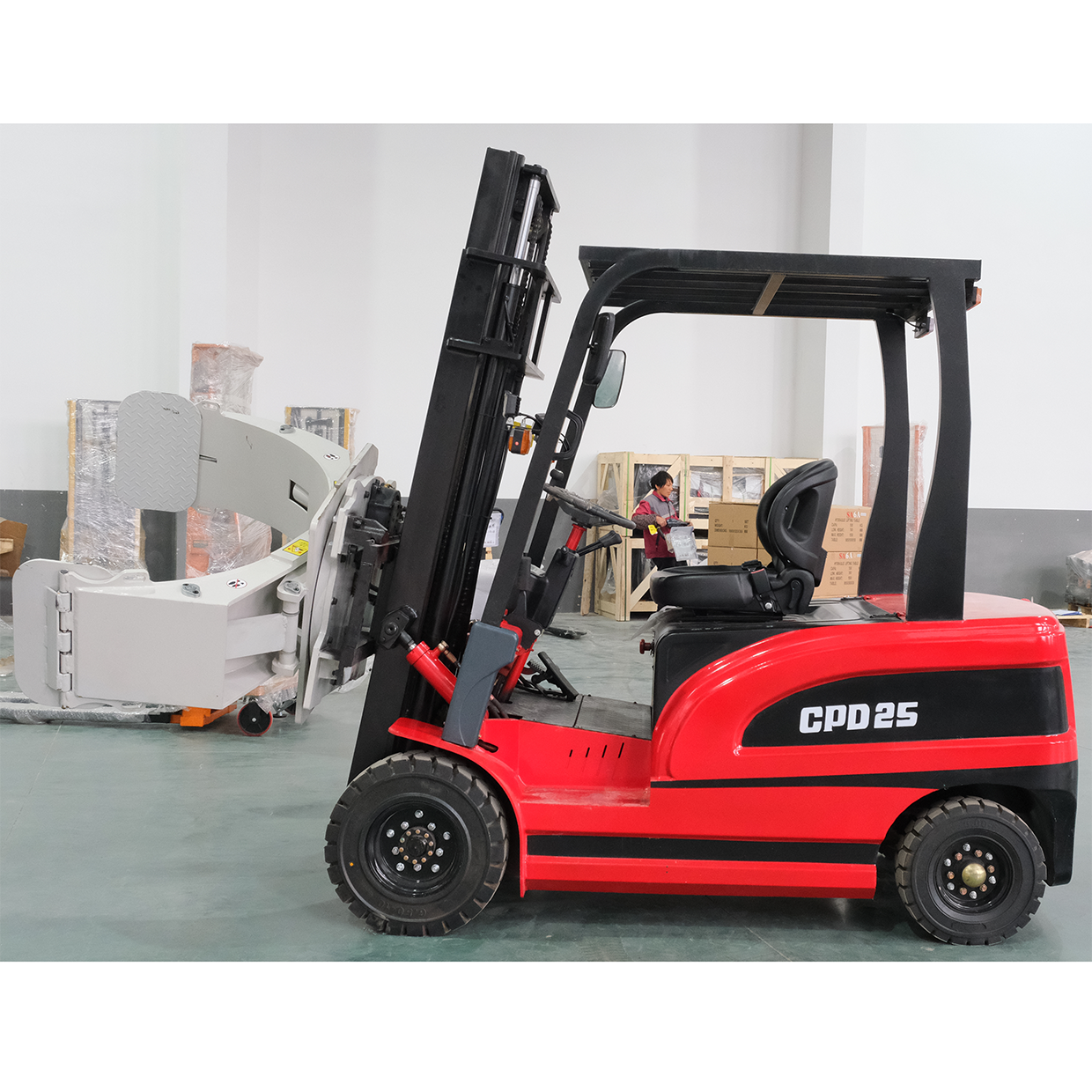

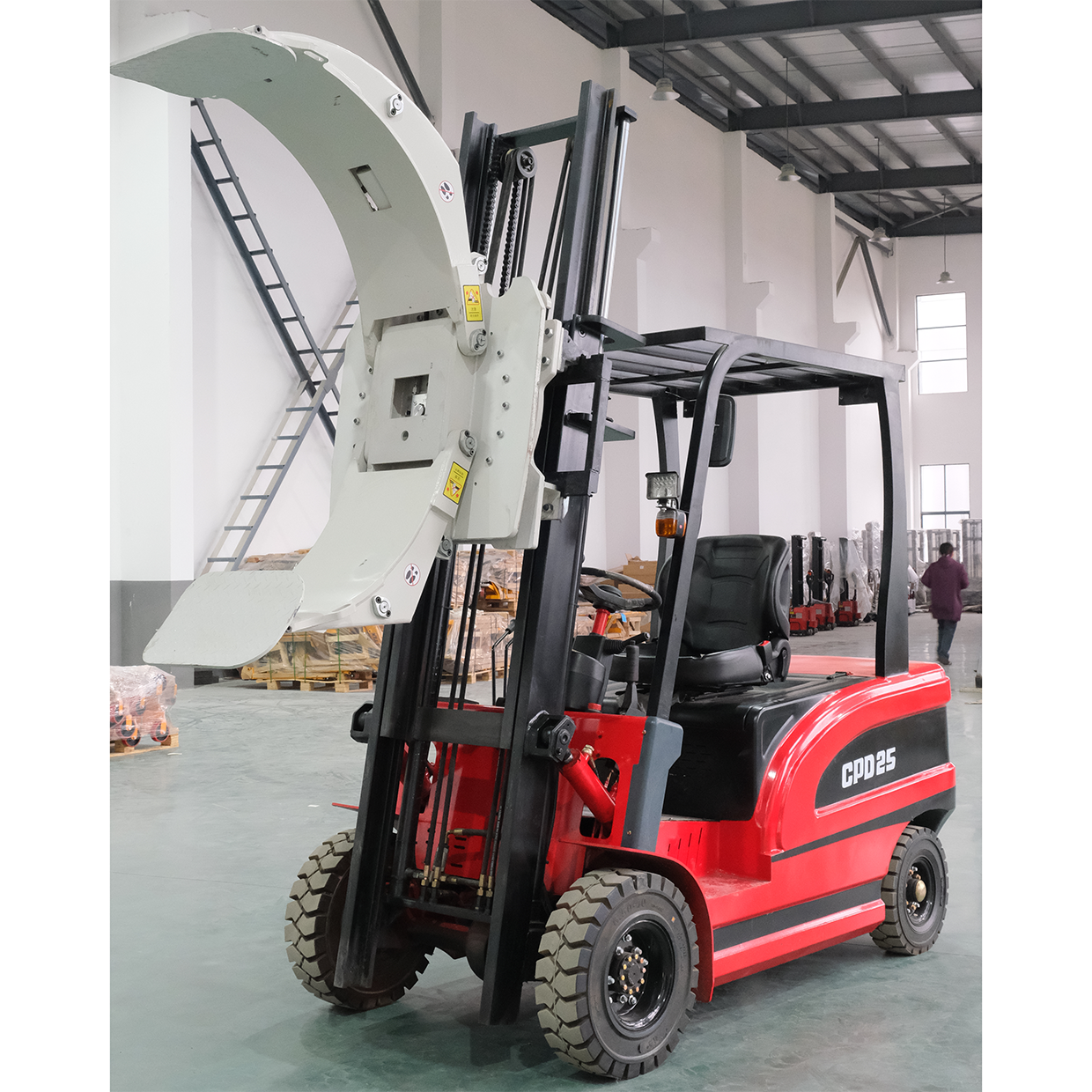

Load 2.5ton 2500kg 4-wheel electric forklift with clamp full electric big battery
The 4-wheel electric forklift truck equipped with a paper roll clamp boasts numerous advantages. It offers exceptional maneuverability and stability, ensuring safe and efficient handling of paper rolls. The electric power source ensures low noise and zero emissions, making it environmentally friendly. The paper roll clamp provides secure and versatile clamping capabilities, enabling the forklift to easily pick up, transport, and stack various sizes of paper rolls. Its compact design and high lifting capacity make it an ideal choice for warehouses, factories, and printing shops, enhancing productivity and reducing labor costs.
![]()
![]()
![]()
1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.
4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.
|
Model
|
|
CPD1530
|
CPD2030
|
CPD3030
|
|
Load Capacity
|
kg
|
1500
|
2000
|
3000
|
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
|
Load Center
|
mm
|
500
|
500
|
500
|
|
Fork size
|
mm
|
1070*100*40
|
1220*120*60
|
1220*120*60
|
|
Ground Clearance
|
mm
|
60/130
|
80/130
|
80/130
|
|
Tyre Type
|
|
solid Tyres
|
solid Tyres
|
solid Tyres
|
|
Control Way
|
|
Steering Wheel
|
Steering Wheel
|
Steering Wheel
|
|
Speed Regulation Way
|
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
Stepless Speed Regulation
|
|
Protection Guard Height
|
mm
|
2000
|
2100
|
2100
|
|
Mast Tilt Angle (Front/Rear)
|
(°)
|
3.0/6.0
|
3.0/6.0
|
3.0/6.0
|
|
The Min.Turning Radius
|
mm
|
1750
|
2100
|
2150
|
|
Driving Speed with Full Load
|
km/h
|
6
|
15
|
15
|
|
Maximum Gradient with full load
|
°
|
5°/8°
|
15
|
15
|
|
Battery
|
V/Ah
|
48/140
|
60/280
|
48/420
|
|
Driving Motor
|
kw
|
3
|
5
|
5
|
|
Lifting Motor
|
kw
|
3
|
5
|
5.5
|
|
Tyre Size (Front/ Rear)
|
mm
|
400/400
|
22x7-12/18x7-8
|
22x7-12/18x7-8
|
|
Overall dimensions(L*W*H)
|
mm
|
3000*1030*2100
|
3450*1100*2100
|
3750*1160*2100
|
|
Weight
|
kg
|
2200
|
3000
|
3800
|
|
Reference Working Time
|
h
|
4/6
|
4/6
|
4/6
|
|
Increased height each tonnage
|
mm
|
1600/2000/2500/3000/3500
|
||
|
Max height
|
mm
|
2100/1600/1850/2100/2350
|
||
Function of electric four-wheeled forklift with holding clamps
Electric four-wheeled ride-on fully automatic holding clip flip lift forklift can hold cloth rolls, paper rolls type, etc.. Battery all-electric clamping flip forklift can be automatic lifting, it can be 360 degrees rotating flip, left and right rotating clamping.
Clamping forklift truck it is in the traditional forklift upgraded and transformed, can be more convenient, efficient extraction of goods with cylinder, reduce the labor intensity of the staff.
Electric clamping forklift can quickly grab, carry and flip the workpiece, thus greatly improving the production efficiency. The forklift can precisely control the position and angle of the workpiece, thus improving the quality stability of the product.
